AEM’s Programmable Engine Management Price: $2,549.99
AEM’s Universal Programmable Engine Management System adapts to any race vehicle using the company’s flying lead wiring harness and sensors (sold separately). In addition to the features found in our Plug & Play EMS, AEM’s Universal EMS also includes 10 independent, built-in peak & hold injector driver channels, direct drive ignition and dual wideband UEGO controllers. Peak & Hold injector drivers enable users to utilize low impedance injectors with a true 4/1 Peak & Hold injector drive circuit. The Direct Drive ignition feature allows users to drive a coil directly from the ECU without the need for an igniter or ignition module, and a wideband UEGO controller is an essential tuning tool that provides a 0-5 signal for monitoring and tuning air/fuel ratios (AFR) on heavily modified high-performance engines.

System is fully enabled—Never pay for upgrades!
Runs on Windows™ compatible software
Live help window eases tuning process
Free software updates on aempower.com
Fuel table automapping
Programmable traction control
Onboard 512kb datalogger
Up to 10 cylinder sequential fuel injection
10 independent peak & hold injector drivers
Direct drive ignition feature eliminates need for igniter or ignition module
On-board wideband UEGO controller
6 general-purpose outputs
7 definable switch inputs
Electronic boost control
Soft cut rev limiters
Two step launch control
Wet or dry nitrous control
Definable knock control
Full idle control
4 EGT inputs with fuel control
16/32 hybrid high speed processor

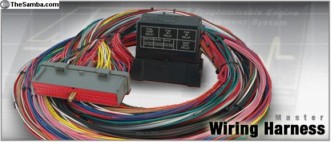

Universal EMS Wiring Harnesses
AEM’s high-quality, color-coded master wiring harnesses include everything you need to properly wire your racecar in one easy-to-follow configuration (sold separately). We silk-screen each individual wire function onto the body of the wire to ease the installation process and reduce any chance of misidentifying a wire during set-up.

AEM’s 72” master wiring harness includes built-in fuses and relays for fans, pumps, auxiliary power, and more. AEM also has a 24” wiring harness for adapting our Universal EMS system to an exiting wiring race car harness, and harness mating connector kit with 104 contacts.

*Legal in California only for racing vehicles which may never be used upon a highway.

Color coded harness has bundle identifiers and includes silk-screened functions on wire body for easy identification
Includes integrated fuse box with relays for fans, pumps, auxiliary power and more
Bolt-in plug mates to AEM Universal EMS and eliminates any chance of separation

Product Description
Universal EMS Wiring Harnesses*
Universal EMS 24" Race Harness
30-2901-24 $270.11
Universal EMS 72" Race Harness
30-2900-72 $729.75

Sensors and Connectors FAQs...
AEM offers several sensor and Plug & Pin connector kits for vehicles that require additional outputs and/or upgraded hardware over existing sensors. Available sensors include boost/backpressure sensors, exhaust gas temperature (EGT) sensors, nitrous oxide/brake pressure sensors, UEGO replacement sensors, inlet air temp sensors (IAT), K-Type sensors and more. All sensors come with a three- wire mating connector with 12" leads for ease of installation.

High-quality sealed sensor housings
Mating connector and 12” leads included (sensors)
Accurate and affordable!

Sensors and Connectors
1 Bar Map or 15 PSIA Sensor Kit
30-2130-15 $171.52
100 PSIG Sensor Kit
30-2130-100 $171.52
1000 PSIG Sensor Kit
30-2121 $217.23
150 PSIG Sensor Kit
30-2130-150 $171.52
2 Bar Map or 30 PSIA Sensor Kit
30-2130-30 $171.52
2000 PSIG Sensor Kit
30-2130-2000 $171.52
3.5 Bar Map or 50 PSIA Sensor Kit
30-2130-50 $171.52
5 Bar Map or 75 PSIA Sensor Kit
30-2130-75 $171.52
500 PSIG Sensor Kit 1/8-NPT Male. Inc. -4 & Barb Adaptors.
30-2130-500 $171.52
72" Serial EMS Coms Cable
35-3001 $7.30
96" UEGO Sensor Replacement Cable for "Gauge-Type" Controller
35-3400 $17.93
96" UEGO Sensor Replacement Cable for "U" EMS
35-3511-96 $57.95
Air Inlet Temperature Sensor Kit
30-2010 $60.64
Boost Control Solenoid Kit
30-2400 $106.05
Bosch Fuel Injector Plug Kit
30-2020 $13.19
Bosch Wideband UEGO "Replacement" Sensor
30-2001 $81.24
Bypass Plug for Twin-Fire Capacitive Discharge Ignition Module. 4 Channel
35-3802 $20.03
Coolant Temperature Sensor Kit
30-2011 $40.62
Exhuast Gas Temperature Sensor Kit
30-2050 $172.15
K-Type Thermocouple Sensor Kit
30-2051 $108.60
Male Connector for Bosch Wideband UEGO Sensor
35-2613 $13.82
Micro-Relay Kit
30-2060 $19.95
Plug-N-Pin Kit for EMS 1002, 1040's, 1310, 1311, 1312, 1313's, 1710 & 1720
35-2611 $70.63
Plug-N-Pin Kit for EMS 30-1010, 1012, 1020, 1050's, 1052's & 1060's
35-2610 $70.63
Plug-N-Pin Kit for EMS 30-1500U
35-2612 $70.63
Plug-N-Pin Kit for EMS 30-1900 & 30-1902
30-2902 $91.88
Universal EMS Wideband UEGO Sensor Kit
30-2002 $149.93
