Koul Tools
Since the invention of stainless braided rubber hose, racers and mechanics have been fighting the problem of
installing it into the socket part of the assembly. If your lucky and get a clean cut on the end of that hose, you
might get it in. Most of the time a little fuzz appears on the hose end and the battle begins. It is not only time
consuming, it can get bloody. KOUL tools has delivered a solution that makes the assembly a snap. Manufactured
of a high tech composite, it is virtually indestructible. No need to worry about vise marks or wearing out. Just insert
the socket into the tool, twist the hose in, and in less than 10 seconds you have it assembled. You can repeat this
several times without recutting the hose end. The tool can pay for itself the first time you don't have to scrap some
hose because it got too short trying to clean up the end. You'll be amazed at the amount of time you'll save. After
using this tool, you will say to yourself, "KOUL".
#6 single Tool $39.99
#8 single Tool $39.99
#10 single Tool $39.99

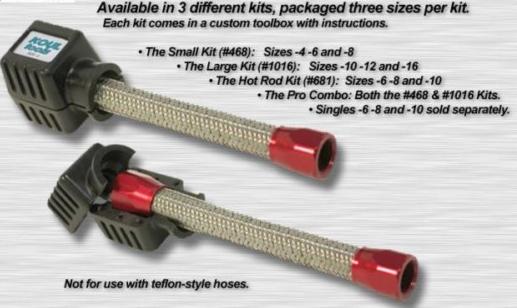

Small Kit for -4, -6, & -8 hose
Features: The small kit contains the capsules to install -4, -6, -8 hose into their respective sockets. To
accommodate all the different manufacturer’s fittings, spacers and sleeves are required to tighten up the some of
the sockets within the capsule. For the tool to perform at its best, the socket needs to be a snug fit in the funnel.
The two spacers are used in some -6‘s and 8‘s. If the socket seems loose in the tool, use a spacer to tighten it up.
In the small kit, only the Russell -4 needs a sleeve.
Not for use with Teflon-style hose. $89.99
Koul Tool
Kits
Large Kit for -10, -12 & -16 hose
Features: The large kit contains the capsules to install -10, -12, -16 hose into their respective sockets. To
accommodate all the different manufacturer’s fittings, spacers and sleeves are required to tighten up some of the
sockets within the capsule. For the tool to perform at its best, the socket needs to be a snug fit into the funnel. In the
1016 kit, all the -16’s except Russell’s require the sleeve and a rear spacer. See the instructions in the case for the
proper spacer number. Most of the -10’s and 12’s* will use a spacer.
Not for use with Teflon-style hose. $99.99








Hot Rod Kit for -6, -8, & -10 popular hose
Features: The Hot Rod kit contains the capsules to install -6, -8, -10 hose into their respective sockets. To
accommodate all the different manufacturer’s fittings, spacers and sleeves are required to tighten up some of the
sockets within the capsule. For the tool to perform at its best, the socket needs to be a snug fit into the funnel.
Spacers are used in some -6‘s, -8‘s, and most -10's. If the socket seems loose in the tool, use a spacer to tighten it
up. See the instructions in the case for the proper spacer number.
Not for use with Teflon-style hose. $94.99











Pro Combo Kit -4,-6,-8,-10,-12,-16
Features: The Pro Combo is a special offer of BOTH the Small and Large kits listed above. Pros need both kits to
handle all the hose sizes in a race car. Ordering this combination will save money.
Not for use with Teflon-style hose. $169.99
