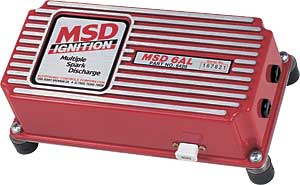

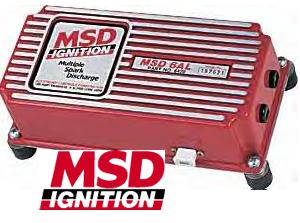

MSD 6AL Ignition Box. Price: $239.99 MSD 6AL Ignition Control with Rev Limiter 4 Cylinder, 6 Cylinder (Even-Fire Only), 8 Cylinder Engines Features: The MSD 6-Series Ignition is a capacitive discharge, multiple sparking ignition that will improve the driveability and performance of every day drivers to weekend warriors. The 6-Series Ignition Controls (except the Digital-6 Plus) all share the same output characteristics when it comes to spark energy, voltage, and the spark series to ensure complete combustion of the air/fuel mixture. All the units have the same wiring but each model has a different feature(s). The 6 Series will work with virtually any vehicle as long as it has a 12-18 volt electrical system. It can be triggered using breaker points, a magnetic pickup or the output of an electronic amplifier. Works on 4, 6 or 8 cylinder engines. Other: Includes rubber shock mounts and modules for 3,000, 6,000, 7,000, and 8,000 rpm. Characteristics: Ignition Box Output: Capacitive discharge Circuitry: Analog Rev Limiter: Yes Timing Retard: None Data Acquisition: No CD Voltage Output to Coil: 460-480 V Current Draw: 1 amp per 1,000 rpm Spark Output (millijoules): 115 Millijoules Minimum Operating Voltage: 10 V Maximum Operating Voltage: 18 V Length (in): 8.000 in. Height (in): 2.250 in. Width (in): 4.000 in. Ignition Box Color: Red Coil Included: No CARB EO Number: D-40-26 Warranty: One-year warranty Quantity: Sold individually. Notes: Even-fire only on V6. |
