Features •Multiple spark, capacitive discharge ignition control •Retard the ignition timing 1 degrees-3 degrees per pound of boost, maximum of 15 degrees, with dash mounted adjustable control knob •Multiple sparks for 20° of crankshaft rotation •Works on 12 - 18 volt electrical system •Accepts breaker points, amplifier and magnetic pickup trigger inputs •470 primary voltage output to coil •110 millijoules per spark up to 15,000 RPM •Built-in Soft Touch Rev Control is adjustable with RPM Modules •Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops •Supplied with rubber shock mounts •Supplied with 3,000, 6,000, 7,000 & 8,000 RPM Module •CARB E.O. Approved |

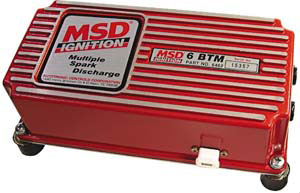

The MSD 6 BTM is ideal for engines with a turbo or supercharger. Not only will the engine benefit
from MSD's full power CD sparks, but there is also an adjustable boost/timing
retard circuit to prevent detonation.When your turbo or blower forces the air/fuel
mixture into the engine, the cylinder pressure inside the combustion chamber
increases. The result is a great increase in power but this can also lead
to detonation that can result in severe engine damage. The 6 BTM lets you dial
away detonation by retarding the timing in relation to the boost pressure.A dash
mounted control knob lets you adjust the amount of timing retard. It can be adjusted
from 0 degrees per pound of boost to 3 degrees per pound (up to 15 degrees).The
6 BTM also shares the Soft Touch Rev Control of the 6AL Ignition for overrev
protection. The BTM is supplied with rubber shock mounts and rpm modules
for 3,000, 6,000, 7,000 and 8,000 rpm. MSD BTM 6 6462 $414.99 each |
