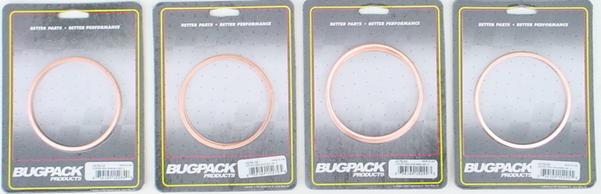

Copper Head Gaskets
barrel Spacers.
Copper head gaskets.
You would use a copper head gasket to help seal up the head to barrel and to add more deck volume to
lower the compression. If this combo will see a lot  of rebuilds like a race motor. Than a copper head gasket
can be used to lower the amount of times to resurface the heads. Each time you remove a pair of heads you
should resurface them but with copper gaskets you can just replace the gasket instead. You can also use a
copper head gasket to set your motor combo to run 0.0" deck then add a .04" copper gasket to get .04"
total deck with most of the burn in the chamber.
Click Here for more info on 0- deck.
We have copper head gaskets for 85.5/87, 90.5/92 and 94mm barrels.
From .04" and .06" thick.
All are $34.99 per set of four.

                                                  90.5/92mm .04"                             94mm .04"






85.5/87mm .06"                                    90.5/92mm .06"                             94mm .06"

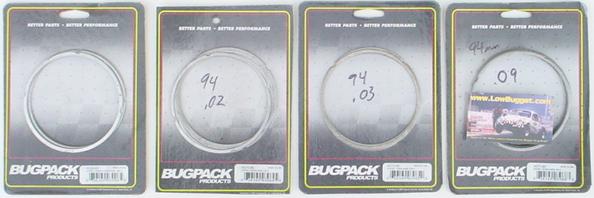

Barrel Shims / Spacers
You would use barrel spacers to move the barrel out to give more deck height. They are made of hardened
steel and should use a sealant to seal them up when installing.
We have them for 85.5/87, 90.5/92 and 94mm barrels.
From 0.01" .02" .03" .04 .06" For $13.99 per set.
.09" for $19.99 per set
.180" for $49.99 per set.

                                                     85.5/87mm    Please state the size and quantity you want when ordering.
From 0.01" .02" .03" .04 .06" For $13.99 per set.


                                                90.5/92mm   Please state the size and quantity you want when ordering.
From 0.01" .02" .03" .04 .06" For $13.99 per set.


                                        94mm   Please state the size and quantity you want when ordering.
From 0.01" .02" .03" .04 .06" For $13.99 per set.





                                                90.5/92mm   Please state the size and quantity you want when ordering.
.09" For $19.99 per set.


                                        94mm   Please state the size and quantity you want when ordering.
.09" For $19.99 per set.






                                                 90.5/92mm   Please state the size and quantity you want when ordering.
.180" For $49.99 per set.


                                         94mm   Please state the size and quantity you want when ordering.
.180" For $49.99 per set.
